| Category | Descriptions | |

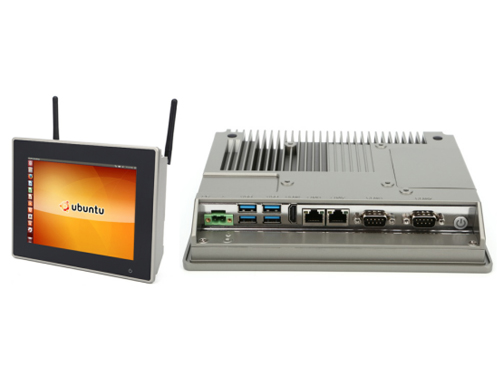

| Model(型号) | No. | YL-6011 |
| 核心模块 Nucleus Module | CPU | Intel® Celeron® Processor 3855U (Dual Core 2M Cache, 1.6 GHz) |
| Intel® Core™ Processor i5-6200U (Dual Core 3M Cache, up to 2.8GHz) | ||
| Chipset | Intel® Skylake ULT SOC integrated chipset | |
| BIOS | AMI 64Mbit Flash ROM | |
| RAM | Onboard DDR4 2133MHZ 4GB (Up to 8GB ) | |
| Storage | 1*mSATA slot(16G/32G/64G/128G SSD), 1*SATA bay(500GB-6TB SSD/HDD, up to 6.0Gbps) | |
| Graphic | Integrated Intel® HD Graphics 510/520 | |
| Network | 2*Intel® Ethernet WG I211-AT PCIe GbE Controller | |
| Audio | Realtek ALC892 (Support Mic-in/Line-out , SPK of 3W) | |
| Display(显示) | LCD | 8" WXGA TFT color LCD, resolution: 1024 x 768, LCD MTBF: 50000 HRS (standard) |
| HMI(触摸屏) | HMI panel | 5-wire resistive, Touch time: 1 million @ 250gf Force |
| I/O(接口) | Lan | 2*RJ45 (Gigabit Ethernet) |
| USB | 4*USB3.0 | |
| Display | 1*HDMI (Support max 3840*2160 @ 60Hz) | |
| COM | 2*RS-232/422/485 (4 more to be extended via EXT IO) | |
| Button | 1*Power Button | |
| Expansion | 1*mini-PCIe (support WiFi and Bluetooth) | |
| OS(系统) | Operating System | Windows 7/8/10, Linux |
| Structure(机构) | Dissipation | high-quality profile case for quick heat dissipation |
| Housing | aluminum alloy | |
| Mounting | 75 * 75mm, 100 * 100mm VESA mounting | |
| Dimensions | 218 * 176 * 42.5mm / 8.58 * 6.93 * 1.67 Inch (WxDxH) | |
| Weight | 1.8KG(N.W.) | |
| Power(电源) | DC In | DC 9-24V power supply and AC power adapter |
| Temperature & Humidity(温/湿度) | Working Temp. | -30°C~ 65°C (-22°F~149°F) |
| Strorage Temp. | -40°C~ 85°C (-40°F~185°F) | |
| Working Humidity | 10% - 95% relative humidity(Non-condensing) | |
| Cert.(认证) | Safety | CE, FCC, RoHS |
| Packing(包装) | Items |
panel pc, power adapter, power cord, CD driver, VESA bracket & HDMI to
VGA Adapter(Optional) |
