| Category | Descriptions | |

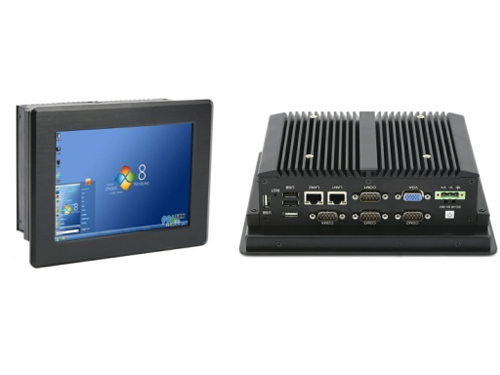

| Model(型号) | No. | YL-3011 |
| 核心模块 Nucleus Module | CPU | Intel® Celeron® 1037U (Dual Core 2M Cache, 1.8 Ghz) |
| Intel® Core™ i5-3317U (Dual Core 3M Cache, up to 2.6Ghz) | ||
| Chipset | Intel® NM70 Mobile Chipset/Intel® QM77/QM67 Express integrated chipset | |
| BIOS | AMI 64Mbit Flash ROM | |
| RAM | Onboard DDR3 1333MHZ 2GB (4GB Optional) | |
| Storage | 1*SATA bay(7+15P 500G-1T 2.5" HDD or 32G/64G/128G SSD),optional | |
| Graphic |
Integrated Intel® HD Graphics for 3rd Generation Intel® Processors Integrated Intel® HD Graphics 4000 | |
| Network | 2*Intel® Ethernet Controller 82583V 1000M lan | |
| Audio | Realtek ALC892 | |
| Display(显示) | LCD | 8.1" WXGA TFT color LCD, resolution: 800 x 600, LCD MTBF: 50000 HRS (standard) |
| 触摸屏 | HMI panel | 4-wire resistive, USB interface, Touch time: 1 million @ 250gf Force |
| I/O(接口) | Lan | 2*RJ45 lan (Gigabit Ethernet) |
| USB | 4*USB2.0 | |
| COM | 1*RS-232/422/485(COM1), 3*RS-232(COM2-4) | |
| Button | 1*Power Button | |
| Expansion | 1*mini-PCIe, support WiFi and Bluetooth | |
| OS(系统) | Operating System | Windows Xp/7/8/10, Linux |
| Structure(机构) | Dissipation | high-quality profile case for quick heat dissipation |
| Housing | aluminum alloy | |
| Bracket | VESA bracket | |
| Dimensions | 217.5 * 176.5 * 75.7 mm / 8.56 * 6.95 * 2.98 Inch (WxDxH) | |
| Weight | 2.47KG(N.W.) | |
| Power(电源) | DC In | DC 9-36V power supply and AC power adapter |
| Temperature & Humidity(温/湿度) | Working Temp. | -20~ 65°C (-4°F~149°F) |
| Strorage Temp. | -40°C~ 85°C (-40°F~185°F) | |
| Working Humidity | 10% - 95% relative humidity(Non-condensing) | |
| Cert.(认证) | Protection level | IP51 |
| Safety | CE, FCC, RoHS | |
| Packing(包装) | Items | panel pc, power adapter, power cord, CD driver & VESA bracket(Optional) |
