| Category | Descriptions | |

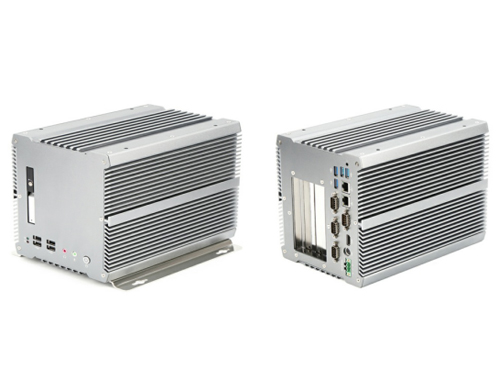

| Model(型号) | No. | YL-6301 |
|
核心模块 Nucleus Module |
CPU | Intel® Celeron® Processor 3855U (Dual Core 2M Cache, 1.6 Ghz) |
| Intel® Core™ Processor i3-6100U (Dual Core 3M Cache, 2.3Ghz) | ||
| Intel® Core™ Processor i5-6200U (Dual Core 3M Cache, up to 2.8GHz) | ||
| Intel® Core™ Processor i7-6600U (Dual Core 4M Cache, up to 3.4GHz) | ||
| Chipset | Intel® Skylake ULT SOC integrated chipset | |
| BIOS | AMI 64Mbit Flash ROM | |
| RAM | Onboard DDR4 2133MHZ 4GB/8GB | |
| Storage |
1*mSATA slot(32G/64G/128G/256G SSD), 1*SATA bay with key-lock protection & LED indicator (for 2.5" removable SSD/HDD ),optional |
|
| Graphic | Integrated Intel® HD Graphics 510/520 | |
| Network |
2*Intel® Ethernet Controller I211AT 1000M lan (Support Intel® Ethernet Controller I210 Series) |
|
| Audio | Realtek ALC892 | |
| I/O(接口) | Lan | 2*RJ45 (Gigabit Ethernet) |
| USB | 4*USB3.0, 4*USB2.0, 1*USB2.0 Onboard inside | |
| Display | 1*HDMI | |
| PS/2 | 1*Keyboard/Mouse Port | |
| COM | 1*RS-232/422/485(COM1), 3*RS-232 (COM2-4)(up to 6COM) | |
| Button | 1*Power Button | |
| SPK | 1* Audio-out | |
| Mic | 1*Mic-in | |
| Expansion |
1*mini-PCIe (support WiFi and Bluetooth) 3*PCI |
|
| OS(系统) | Operating System | Windows 7/8/10, Linux |
| Structure (机构) | Dissipation | high-quality profile case for quick heat dissipation |
| Housing | aluminum alloy | |
| Bracket | 2 brackets for wall or rack mounting | |
| Dimensions | 230 * 156 * 185mm / 9.06 * 6.14 * 7.28Inch (WxDxH) | |
| Weight | 4.22KG(N.W.) | |
| Power(电源) | DC In | DC 9-24V power supply and AC power adapter |
| Temperature & Humidity(温/湿度) | Working Temp. | -40°C~ 65°C (-40°F~149°F) |
| Strorage Temp. | -40°C~ 85°C (-40°F~185°F) | |
| Working Humidity | 10% - 95% relative humidity(Non-condensing) | |
| Cert.(认证) | Safety | CE, FCC, RoHS |
| Packing(包装) | Items |
pc, power adapter, power cord, CD driver, 2 brackets, SATA tray keys & HDMI to VGA Adapter(Optional) |
